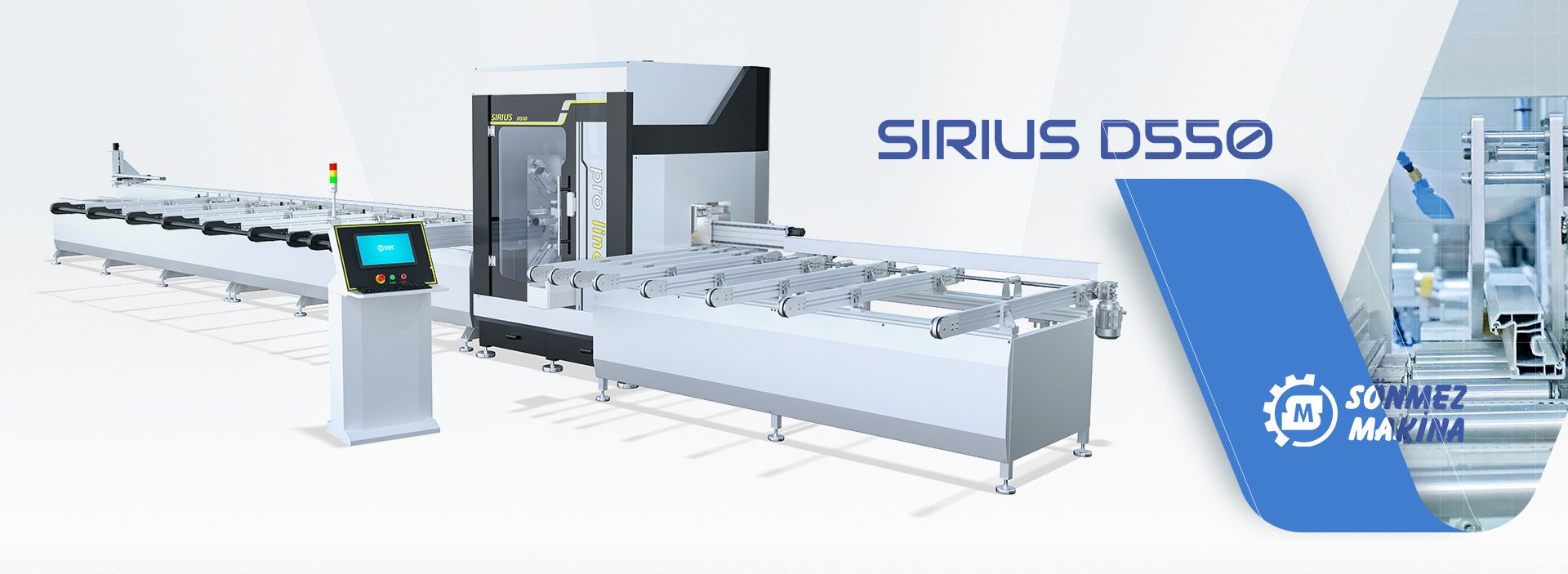

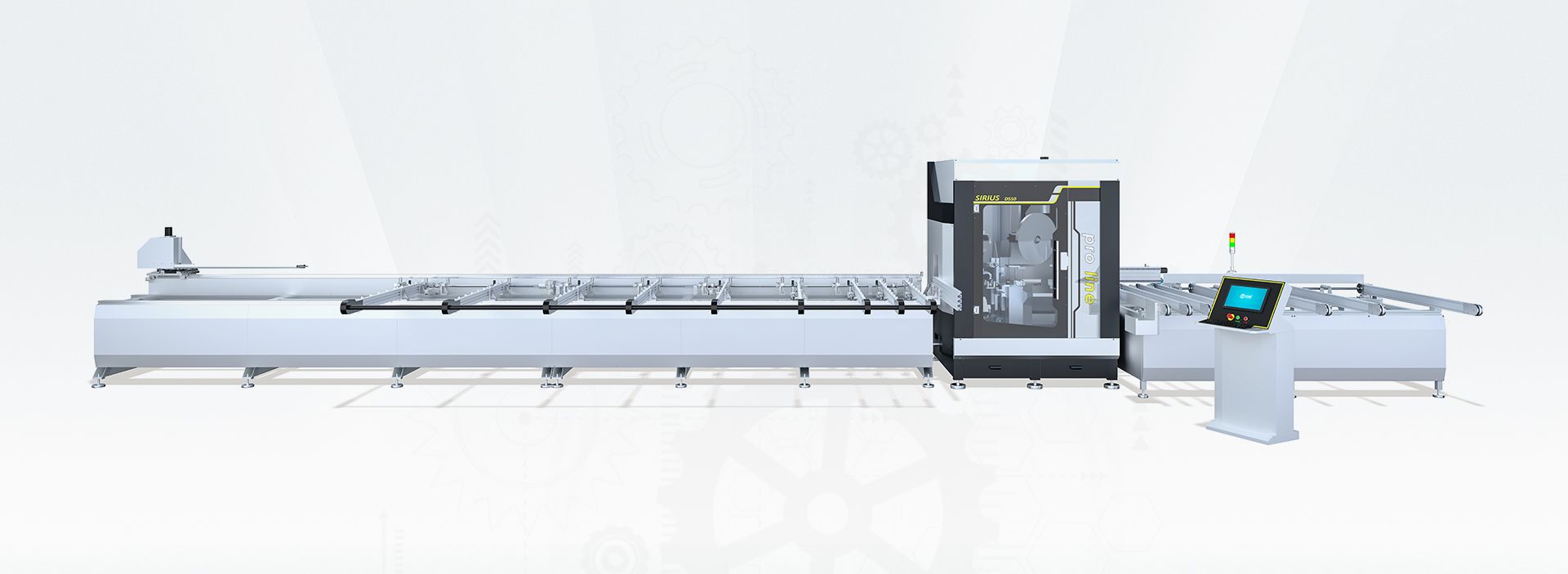

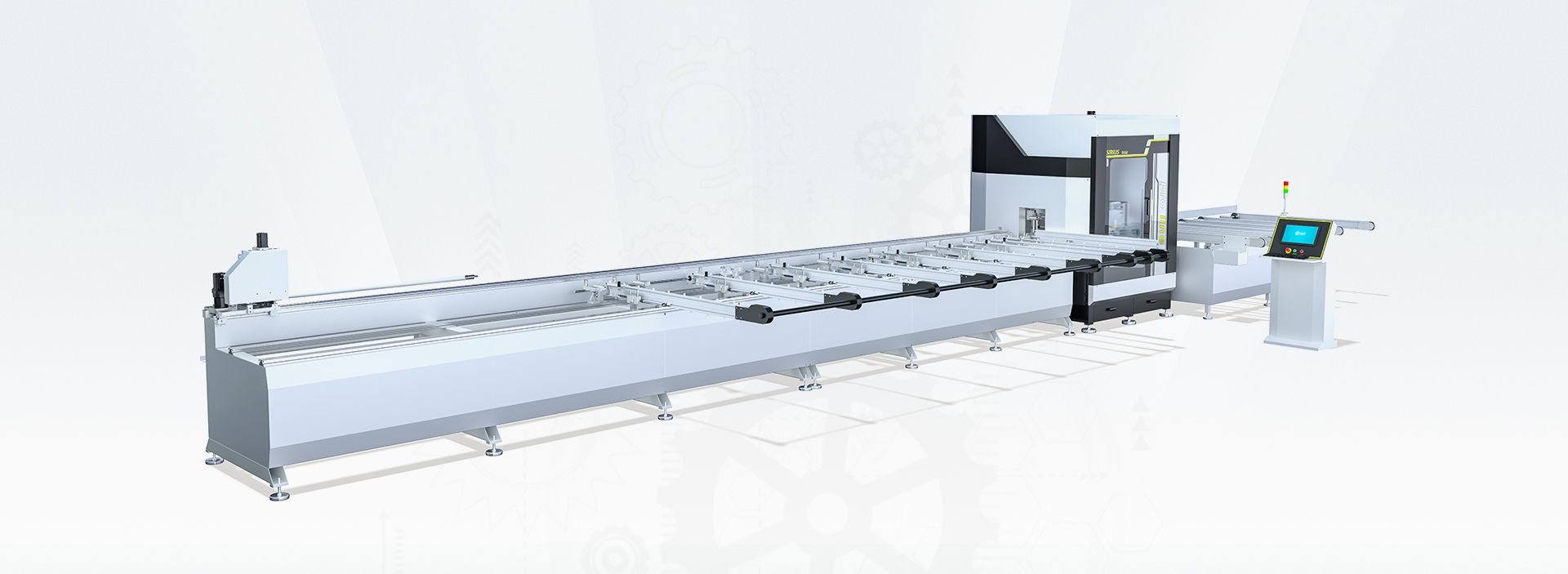

Pvc Profile Machining and Cutting Center SIRIUS D550 SIRIUS D550
" Pvc Profile Machining and Cutting Center - SIRIUS D550
Pvc Profile Machining and Cutting Center SIRIUS D550 SIRIUS D550

TECHNICIAL SPECIFICATIONS

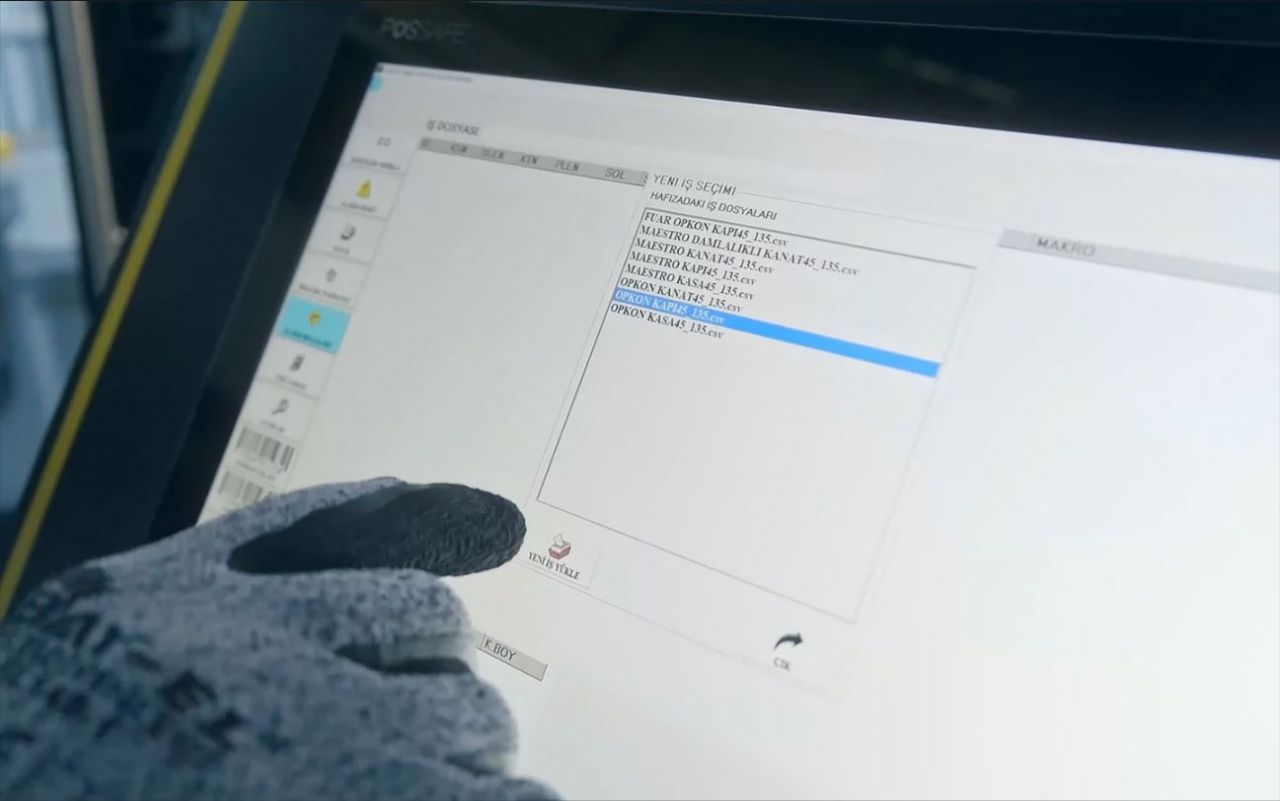

Control Panel

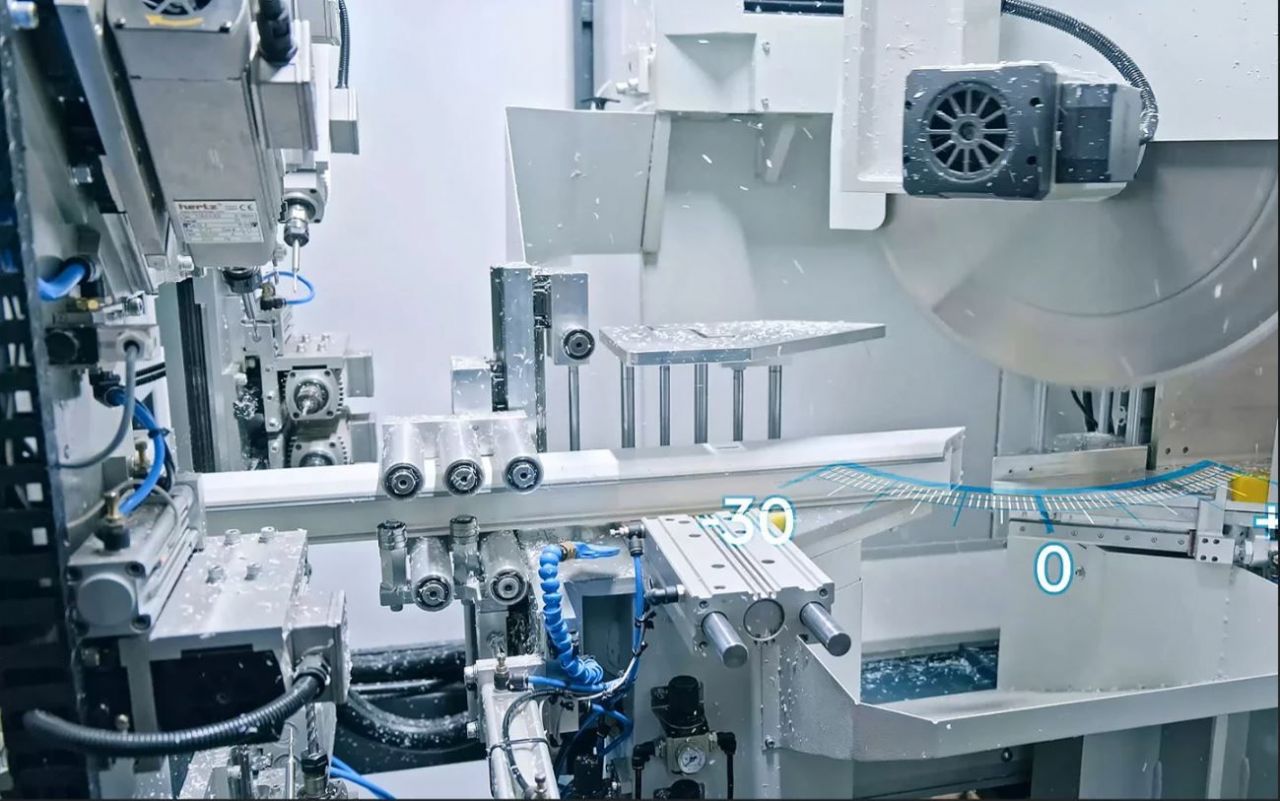

-Automatic cutting in all angles between 30° and 150° with accuracy of 0,1° by means of servo motors
-Stacking of 10 profiles (max 7 m length)
-Industrial PC with Windows XP embedded which works between 0°C – 55°C without fan
-Data transfer is available via network and connection or USB interface
– Thanks to its easy-to-use and flexible operating system, all works in harmony with chopping and optimization programs.
– There is a working algorithm in accordance with the principle of minimum waste and maximum production.
– Waste can be automatically optimized and evaluated within the cut lists sent.
– Parameters can be adjusted easily.
– Usb login

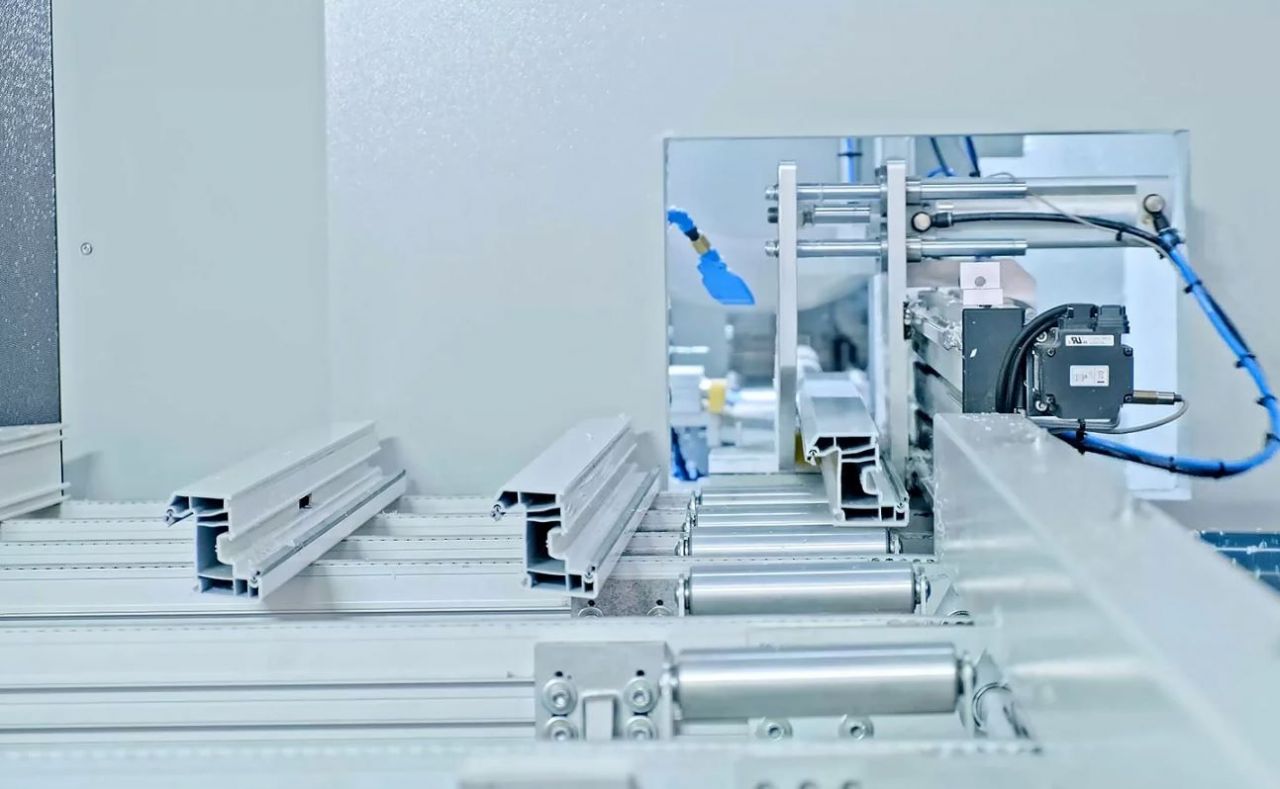

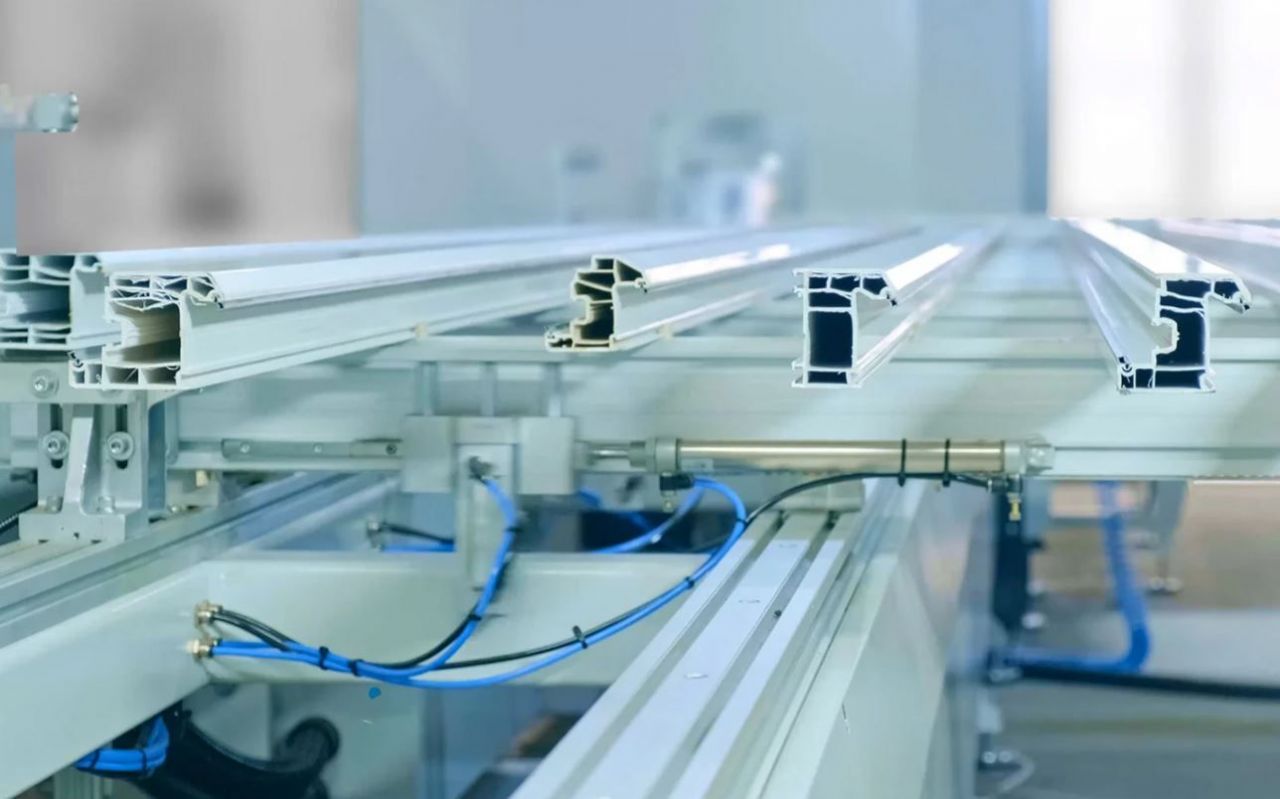

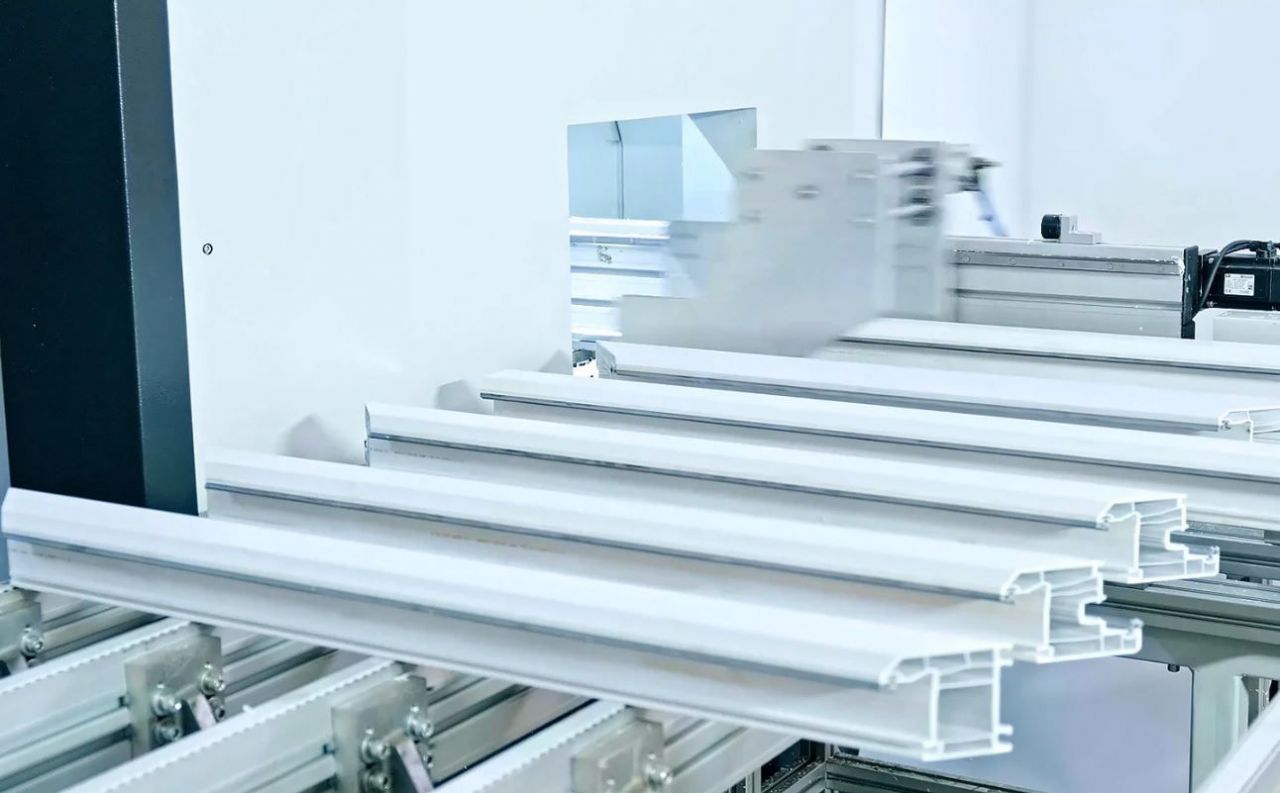

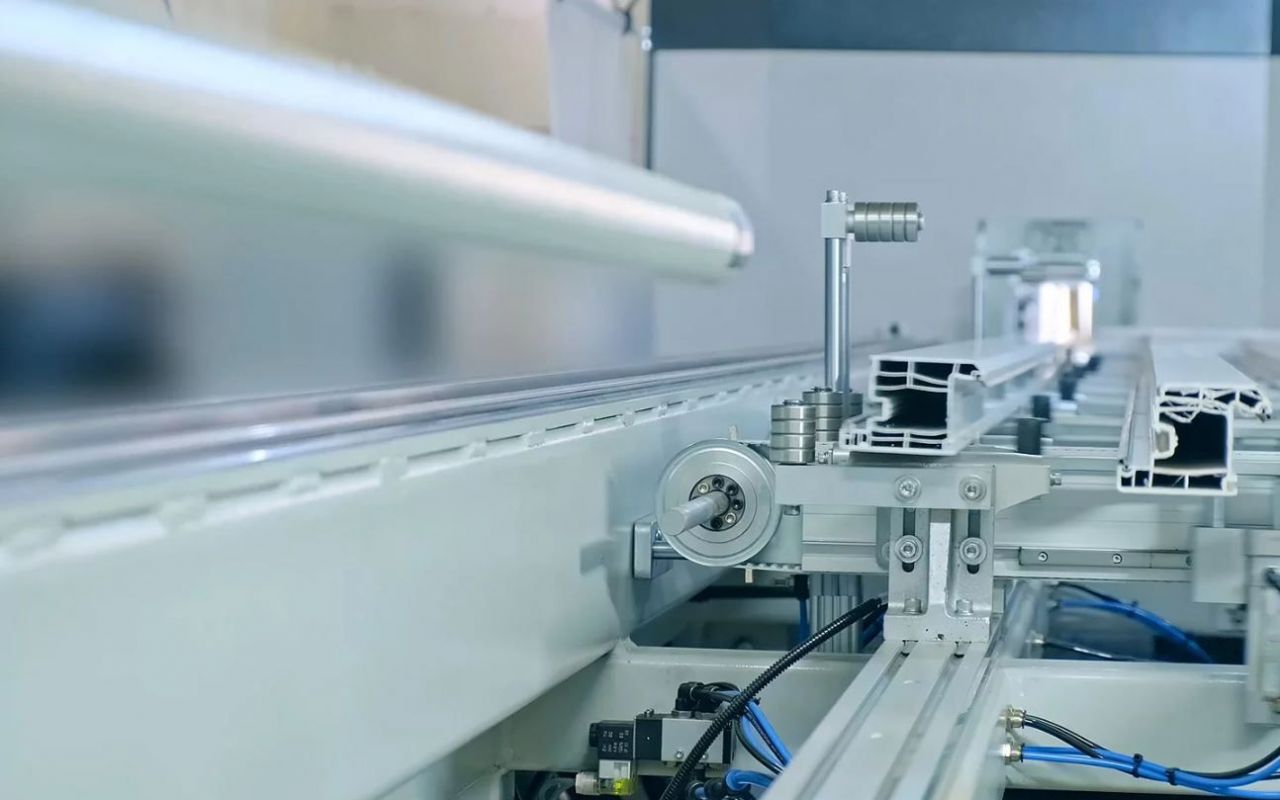

Profile Entry Unit

– 10 Profiles can be loaded on the input conveyor.
– Profile loading capacity can be increased optionally.
– Profile transport and positioning, automatic profile recognition feature.
– Minimum 900 mm., Maximum 7000 mm. It measures the profile length automatically. (There is an infinite length processing option)
– There is a warning system that prevents the wrong profile.
-Ability to back-up daily data on internal storage unit

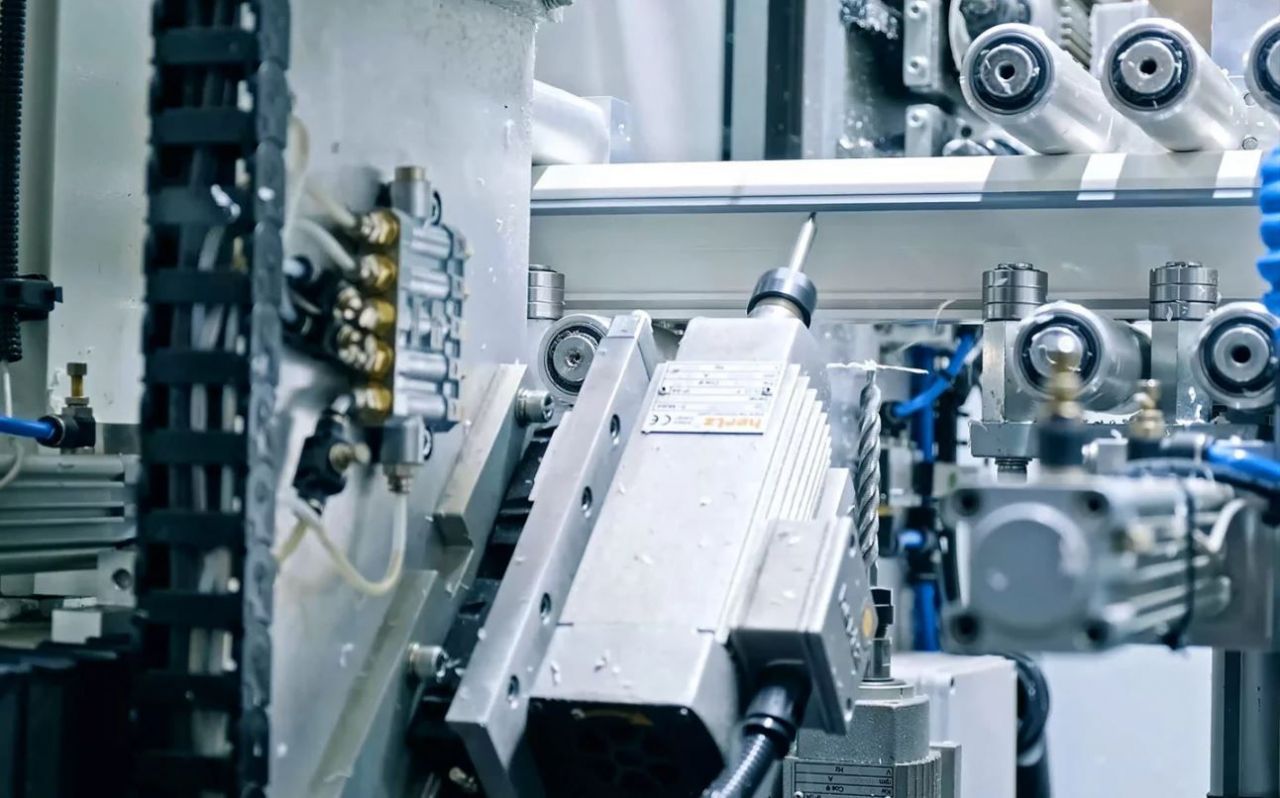

-Central lubrication system to ease the machine maintenance
-Problem identification, solution and servicing by means of remote connections
-Ability to notify the user against incorrect loaded profile thanks to profile recognition system



TECHNICIAL SPECIFICATIONS

Electric Values 380-400V, 3ph, 50-60 Hz
Total kW Value 15 kW
Engine kW 1.5 kW
Air Consumption 450 lt/min
Air Pressure 6-8 Bar

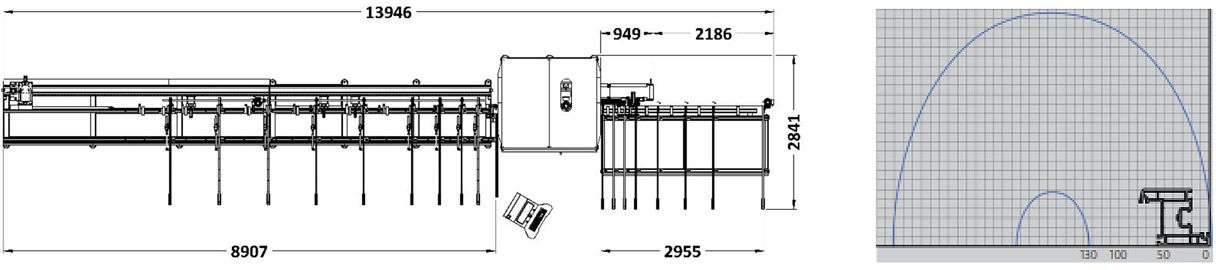

Machine Height 2841 mm
Machine Length 13946 mm
Machine Width 2084 mm
Machine Weight 4500 Kg
Maximum thickness profile can be cut 130 mm
Maximum Profile Height That Can Cut 160 mm
Minimum Thickness profile can be cut 30 mm
Minimum height profile can be cut 35 mm
Saw Outside Diameter 1 Piece Ø550
Saw Inside Diameter Ø30
Saw Thickness 4,2 mm
Number of Saw Teeth 120
Number of Saws Used 1
Minimum Workable Profile Length 350 mm
Maximum Workable Profile Length 7000 mm
Maximum Length of Profile That Can Be Loaded 7000 mm
